Parameter
Absolute Maximum Rating at TA=25℃
|
Parameter
|
Symbol
|
Absolute Maximum Rating（T8-N8W-60/90/120/150）
|
Unit
|
|
Working Voltage
|
V
|
AC85-265V
|
V
|
|
Power Dissipation
|
PD
|
8 / 10 / 12 / 16 / 18 / 20 / 22
|
W
|
|
Electrostatic discharge
|
ESD
|
800
|
V
|
|
Operating Temperature
|
Topr
|
-20∽+50
|
℃
|
|
Storage Temperature
|
Tstg
|
-30∽+60
|
℃
|
Electrical / Optical Characteristics at TA=25℃
|
Length
|
Part No.
|
Color
|
Color Temp.
|
Lumen
|
Power
|
CRI(Typical)
|
Viewing Angle
|
|
60cm
|
T01/T8-N8W-60
|
Cool white
|
5000-6000K
|
840 lm
|
8W
|
78
|
120°
|
|
T01/T8-N8WW-60
|
Warm white
|
3000-3500K
|
680 lm
|
8W
|
75
|
120°
|
|
T02/T8-N8W-60
|
Cool white
|
5000-6000K
|
1055 lm
|
10W
|
78
|
120°
|
|
T02/T8-N8WW-60
|
Warm white
|
3000-3500K
|
898 lm
|
10W
|
75
|
120°
|
|
90cm
|
T03/T8-N8W-90
|
Cool white
|
5000-6000K
|
1225 lm
|
12W
|
78
|
120°
|
|
T03/T8-N8WW-90
|
Warm white
|
3000-3500K
|
1032 lm
|
12W
|
75
|
120°
|
|
|
T04/T8-N8W-120
|
Cool white
|
5000-6000K
|
1680 lm
|
16W
|
78
|
120°
|
|
T04/T8-N8WW-120
|
Warm white
|
3000-3500K
|
1450 lm
|
16W
|
75
|
120°
|
|
T05/T8-N8W-120
|
Cool white
|
5000-6000K
|
2100 lm
|
20W
|
78
|
120°
|
|
T05/T8-N8WW-120
|
Warm white
|
3000-3500K
|
1800 lm
|
20W
|
75
|
120°
|
|
150cm
|
T06/T8-N8W-150
|
Cool white
|
5000-6000K
|
1875 lm
|
18W
|
78
|
120°
|
|
T06/T8-N8WW-150
|
Warm white
|
3000-3500K
|
1750 lm
|
18W
|
75
|
120°
|
|
T07/T8-N8W-150
|
Cool white
|
5000-6000K
|
2350 lm
|
22W
|
78
|
120°
|
|
T07/T8-N8WW-150
|
Warm white
|
3000-3500K
|
1900 lm
|
22W
|
75
|
120°
|
Notes:Tolerance of measurement of luminous intensity±15%.
Features
Special design of end-cap
Design of removable end-cap provides quick replacement of inner-transformer by pressing the switch on the end caps easily.
Perfect design to avoid led failure in series
New technology to make all leds in the tube work independently.
Top quality PC cover
Both transparent and milky covers are available. For milky cover, LEDS are invisible, same as traditional fluorescent light.
Great Lighting source
High quality Epistar chip with bigger size(10*23μ), which is at least 6.5lm-7lm.
Low light attenuation
New technology is adopted for white light which the light attenuation is less than 3% in 1000h, however, the traditional attenuation of white color at least 30%;
Ultra quality inner transformer
Self-researched inner driver are used with isolate high. PF. and UL approved.
More durable & robust
It can light up to 10 years, comes with 3 years guarantee time.
Tube package
High quality cylindrical package and pin protection avoids shipping damage.
No need to remove ballast and starter
For a long time, there is a technique challenge to achieve LED Tube replace traditional fluorescent light tube directly. We invest a lot in this, and finally a new version tube birthed, our tube can achieve directly replacement, no need make any modification.
Diagram
Isolux Diagram
T01/T02-W/WW

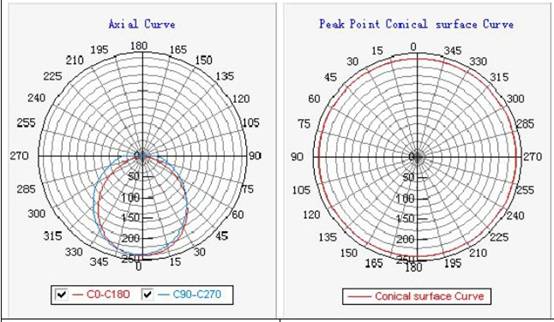

Photomatric Data
T01-White
